API Reference
  1. Authentication

User Authorization

Partners

If you are one of the following types of partners, you can use the user authorization.

  • Introducing Brokers
  • Platforms that require users to complete authorized operations

Authorization Code Flow

Authorization Code Flow is intended for the App to access protected resources on the resource servers on behalf of the user,
as described in Section 4.1 of RFC6749.

The Authorization Code Flow has two steps.
First, the App redirects the user's browser to the Authorization Endpoint with client_id, redirect_uri, scope, audience and other parameters to request the user's authorization.
If the user has not logged in to Tiger's website, the Authorization Server will redirect the user's browser to Tiger's login page, and then return to the Authorization Endpoint after the user logs in.
After the user authorizes the App, the Authorization Server redirects the user's browser back to the redirect_uri under the App's domain with the Authorization Code code.
The App's front page should then pass the code to the App's server.
The App server then requests the Token Endpoint with the Authorization Code and client credentials to obtain an Access Token.

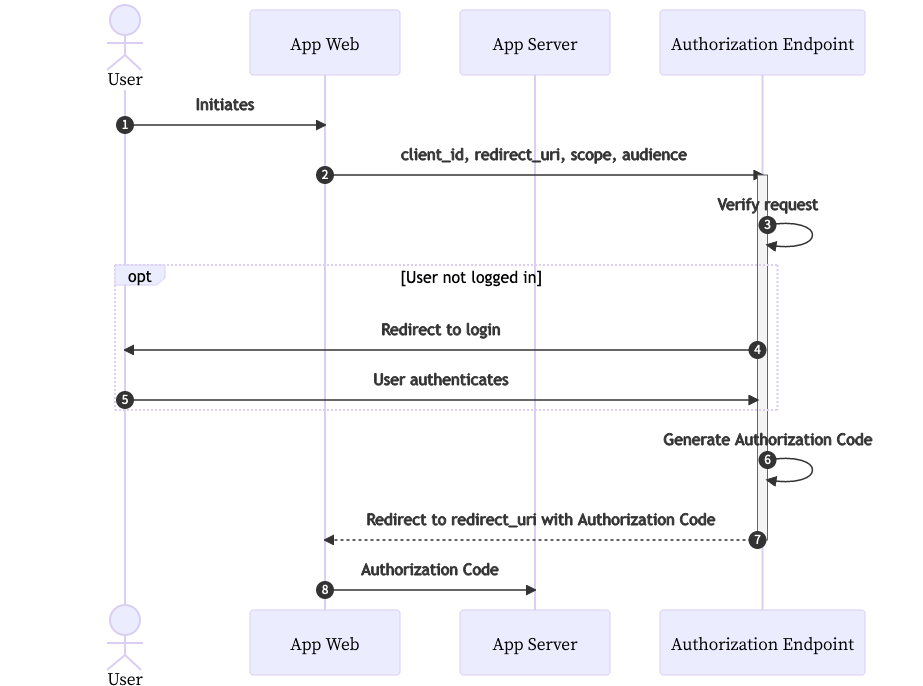

Authorization Request

```mermaid sequenceDiagram autonumber actor u as User participant clientf as App Web participant client as App Server participant authorize as Authorization Endpoint u ->> clientf: Initiates clientf ->>+ authorize: client_id, redirect_uri, scope, audience authorize ->> authorize: Verify request opt User not logged in authorize ->> u: Redirect to login u ->> authorize: User authenticates end authorize ->> authorize: Generate Authorization Code authorize -->>- clientf: Redirect to redirect_uri with Authorization Code clientf ->> client: Authorization Code ```

  1. After the user initiates the request,
  2. The App should direct the user's browser to the Authorization Server's Authorization Endpoint to begin the Authorization Code flow.
    • In the request, the response_type parameter must be set to code to indicate that the App expects to receive an Authorization Code upon a successful request. The App must also provide its client_id, requested scope, and requested audience in the request.
    • The App must also provide a state parameter to store request-specific data and/or prevent CSRF attacks. The Authorization Server will return the unmodified state value back to the App when redirecting.
    • The request can also contain an optional redirect_uri. If not provided, the Authorization Server will redirect to the first URI in the pre-registered redirect_uris list.

    If provided, redirect_uri must EXACTLY match one of the URIs registered during App registration. The Authorization Server will REJECT the request if it does not match any.

  3. Upon receiving the request, the Authorization Server will first verify its validity — i.e., the App indicated by client_id exists, every requested scope and audience is pre-registered, and the redirect_uri is legitimate.
  4. Then the Authorization Server will ask the user to log in and, optionally, approve the requested scopes and audiences.
  5. The Authorization Server will then generate an Authorization Code.
  6. The Authorization Server will redirect to redirect_uri with the code, granted scope, and state.
    • If response_mode is provided in the request, the Authorization Server will construct the redirection using the requested mode.
  7. The App should then pass the code to its server to initiate a token request.

Error Response (Same as described in the API document)

If the client_id does not exist, or the redirect_uri is not valid, the Authorization Server will display the error to the user without redirecting back to the App.

If any other error occurs, the Authorization Server will redirect back to redirect_uri with error, error_description, and state parameters.
If response_mode is provided in the request, the Authorization Server will construct the redirection using the requested mode.

The explanation of errors are as described in Section 5.2 of RFC6749.

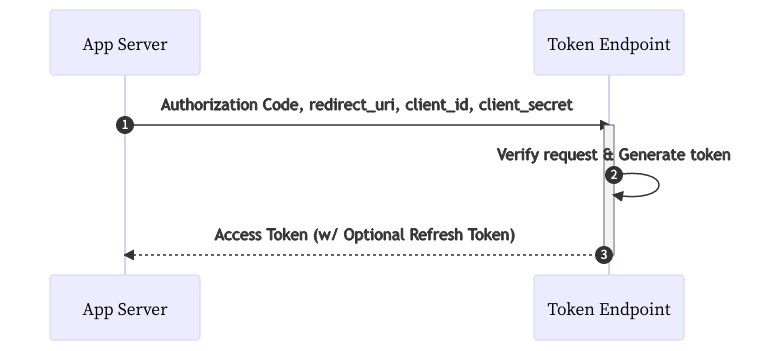

Token Request

  1. The Authorization Server will verify the request — i.e., the App successfully authenticates itself, the code was issued to the same client, the code has not been used, and the redirect_uri matches the one in the initial authorization request.
  2. Then the Authorization Server will generate an Access Token, the form of which is described in Section Access Token.
    • If the offline scope was granted during the authorization request, the Authorization Server will also generate a Refresh Token, which can be used to refresh the Access Token via the Refresh Token Flow.
  3. The Access Token and the optional Refresh Token will be returned to the App as described in the Token Endpoint API document.

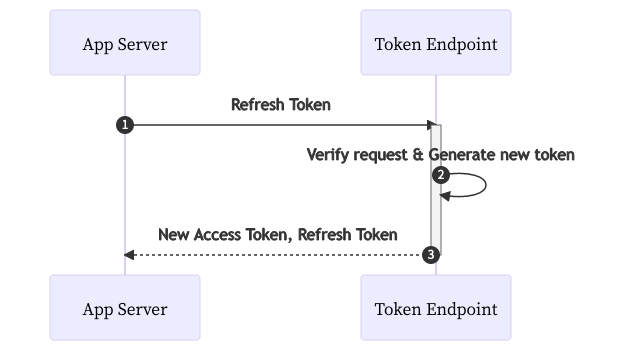

Refresh Token Flow

If a Refresh Token is issued to the App along with the Access Token, the App can use the Refresh Token to obtain a new Access Token and Refresh Token pair at the Token Endpoint, either before or after the Access Token expires.
The Refresh Token also expires after a certain period, but the expiration duration of a Refresh Token is much longer than that of an Access Token.

  1. To request a new Access Token and Refresh Token pair, the App server should send a request to the Token Endpoint.
    • In the refresh request, grant_type must be set to refresh_token, and the Refresh Token should be provided via the refresh_token parameter.
    • The App also needs to authenticate itself by one of the methods explained in Section Authentication Method.
  2. After validating the Refresh Token (is active and was issued to the App) and authenticating the App, the Authorization Server will generate a new Access Token and Refresh Token pair. The scopes and audiences of the new Access Token will be the same as those of the original token.
  3. The new Access Token and Refresh Token will be returned to the App as described in the Token Endpoint API document.
    • The original Access Token and Refresh Token will be IMMEDIATELY revoked and no longer usable.

Additional Security Measures

  • Authorization Code Reuse

If an Authorization Code is used more than once, EVERY issued Access Token and Refresh Token that is associated with the code will be revoked.

  • Refresh Token Reuse

If a Refresh Token is used more than once, EVERY issued Access Token and Refresh Token that is associated with the token will be revoked.
